This week we‚Äôre focusing on the development of Dubai‚Äôs land-coast interface between July 2001 and October 2009, looking specifically at the creation of the Palm islands and the World Archipelago. Dubai is the most populous city in the United Arab Emirates, home to 2.7 million people as of January 2017. In a place where Dubai police vehicles include a Lamborghini and a Ferrari, and where it‚Äôs possible to buy gold bars from vending machines perhaps it‚Äôs not surprising to see the creation of extravagant islands.
Palm Islands & The World Archipelago

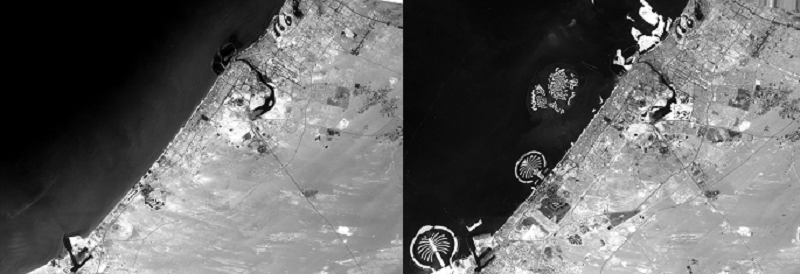

In the animation at the top of the blog, the development of the Palm Islands and The World Archipelago are clearly visible. The first island created was Palm Jumeirah, the smallest of the three planned palm islands, and can be seen just off centre on the animation. It consists of a tree trunk, a crown with seventeen fronds and a surrounding crescent, and is approximately 25 square kilometres in size. Construction began in 2001 and was completed in 2006. The workers used GPS signals to determine the correct place to deposit sand to create the palm effect.
Built in tandem were the Palm Jebel Ali and The World Archipelago. Construction began in 2002 and was expected to be completed in 2015, however work stopped in 2008 due to the financial crisis. Work has remained suspended on Palm Jebel Ali, but development on the World may be about to start. The World has three hundred islands reclaimed from the sea, but most of them are bare sand. In the last twelve months there have been rumours that ‚ÄėThe Heart of Europe‚Äô project and floating seahorses around St Petersburg island could be developed in the near future.
It is also possible to see the preliminary creation of Palm Deira at the top of the animation. 300 million cubic metres of sand were used to form the initial reclamation. However, between 2009 and 2016 there has been no further development.
It is also worth noting the significant urban sprawl between the first and last images. Dubai‚Äôs population increased by 95%, from 910,336 to 1,770,978, during the period we‚Äôre looking at and whilst the growth of Dubai is obvious, it is particularly visible¬†southeast of the Palm Jumeirah development.
Creating the Time Series Animation
The animation was created using the first (blue) visible band of the Landsat 7 Enhanced Thematic Mapper Plus (ETM+) instrument. In May 2003, the scan line corrector ‚Äď used to compensate for forward motion of the spacecraft, ensuring scan lines are parallel ‚Äď failed. Consequently, the instrument images in a zigzag fashion; some data is captured twice, whilst some is not captured at all. As a result, 22 % of data in Landsat 7 images post May 2003 are missing. To compensate for this we‚Äôve used a Geospatial Data Abstraction Library (GDAL) tool to fill ‚Äúno data‚ÄĚ regions by interpolating from nearby valid pixels. The results, whilst not perfect, are nearly indistinguishable at this resolution.
Impacts of the¬†Islands
The development of these islands has not been without its criticism as it has impacted the local ecology. The dredging of sand has increased the turbidity of the seawater, with sediment transport evident in the animation, which has damaged coral reefs. In addition, water around parts of the islands can remain almost stationary for weeks, increasing the risk of algal blooms. Whilst fish have returned to these waters, they are not the same species as were there before.
Viewed from space, both the speed and scale of the development is mesmerising. It is no surprise that tourism is a vitally important part of the local economy, attracting more than 13 million visitors in 2014. With the limitations of available land in Dubai, developments are sure to start again.
Blog produced by Tom Jones on work placement with Pixalytics Ltd.
